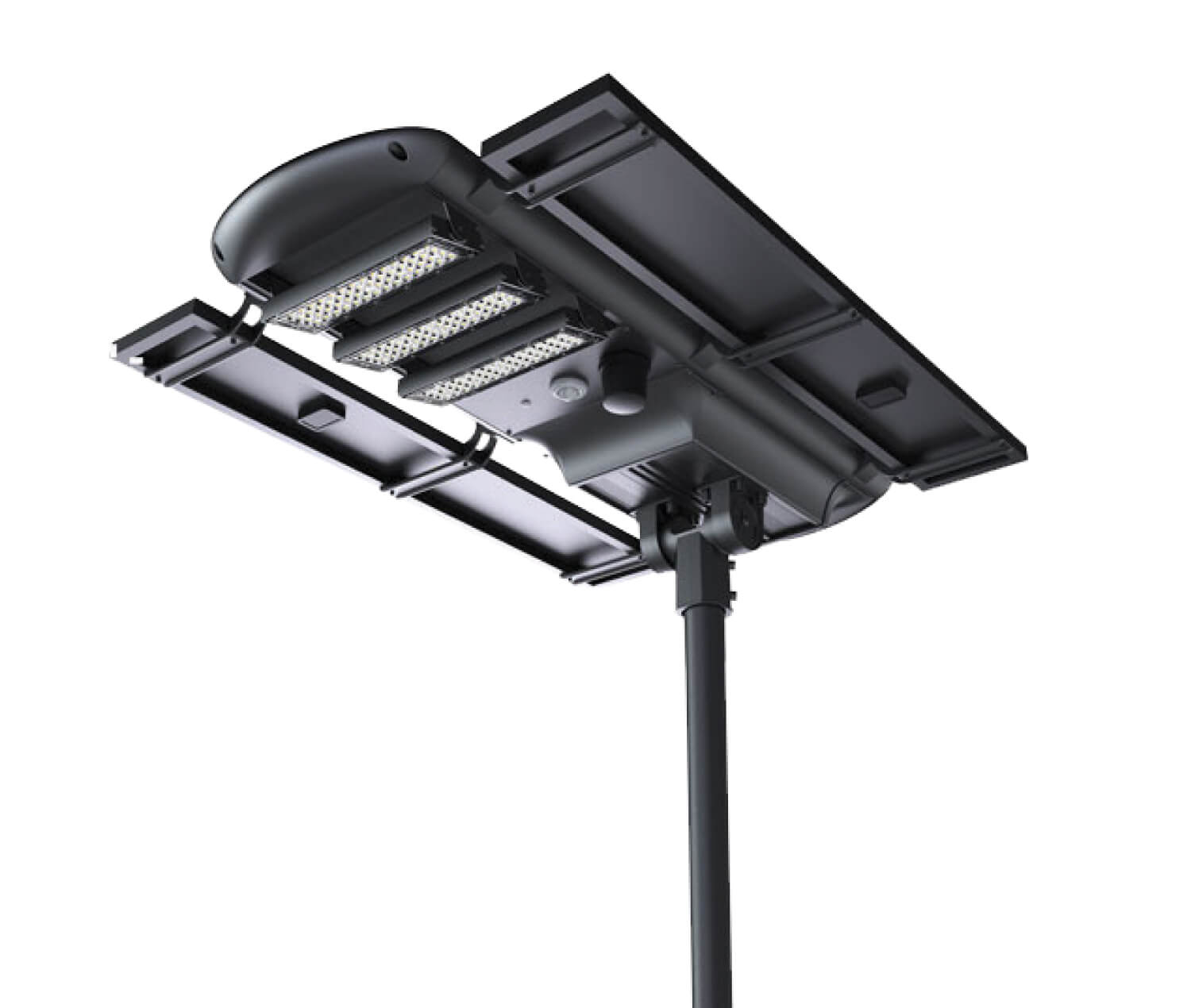

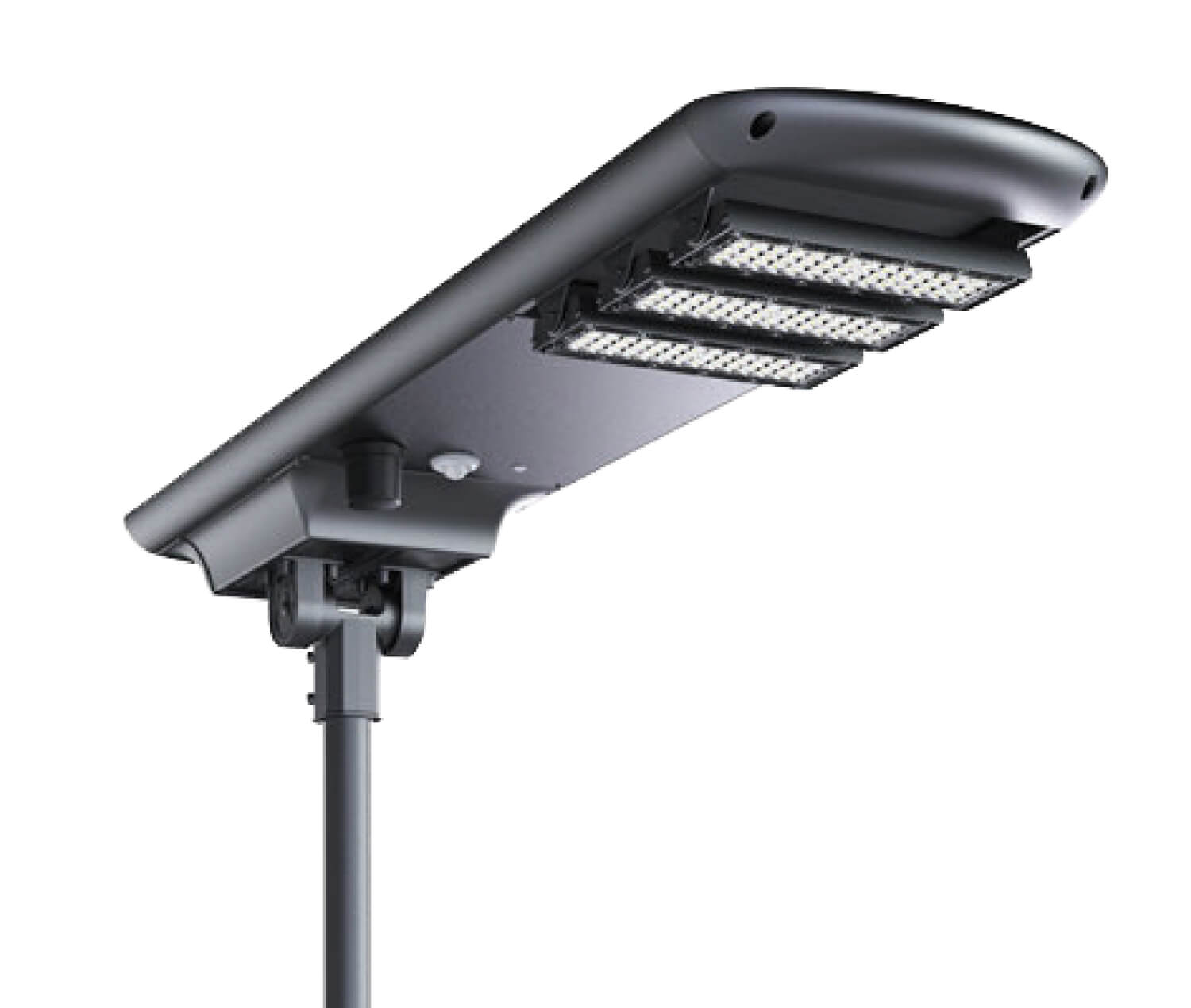

Alrouf Triton Series Integrated Solar Street Light
Click the relevant product code in the table above to access the Flood Light (IES file) files and the installation instructions for your luminaire.
Product Features
- High luminous efficiency of 195lm/W to maximize battery performance.
- Environment friendly - 100% powered by the sun, solar panels reduce fossil fuel consumption, eliminating pollution.
- Off-grid roadway lighting made electric bill-free.
- Self-contained solution - Light on/off controlled by automatic daylight sensing.
- IP66 Luminaire ensures long-lasting and consistent high performance.
- No trenching or cabling work is needed.
- Easy to install and maintain.
- Five Years Warranty.
Performance
- 30W~150W
- 195lm/W
- Philips Lumileds
- PIR & Timer Dimming
- MPPT Controller
- 5000K (2500~6500K optional)
- 60×100° / 70×135° / 75×150° / 80×150° / 110° / 150
- IP66
- IK08
- Monocrystalline silicon photovoltaic panels
- LiFeP04 battery

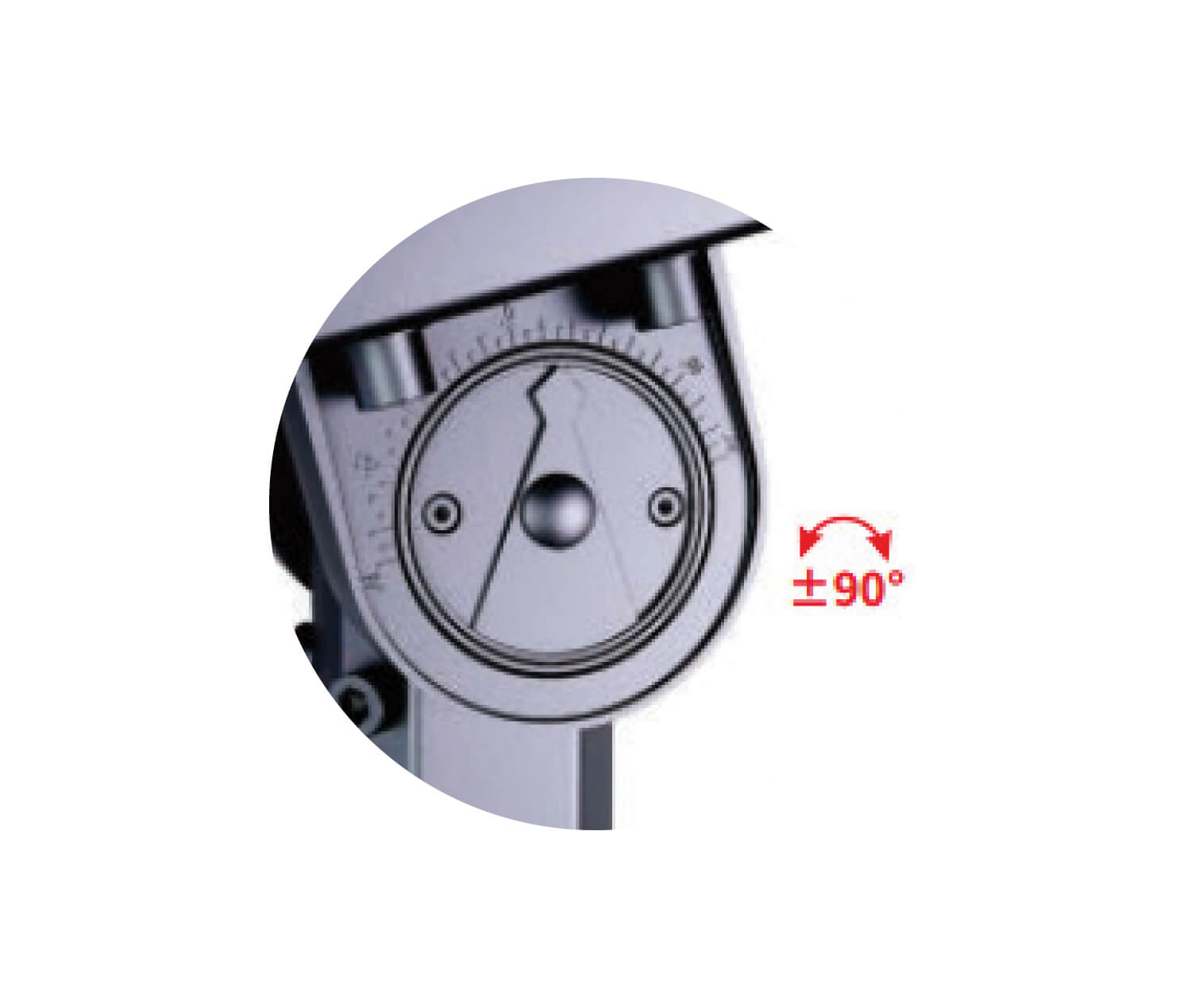

- Slip fitter
- Operating Temperature: -30°C to +50°C (-22°F to 122°F)
- Storing Temperature: -40°C to +80°C (-40°F to 176°F)

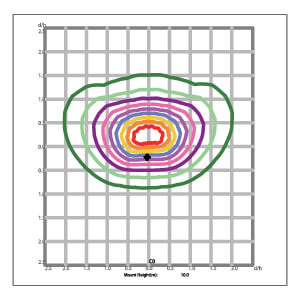

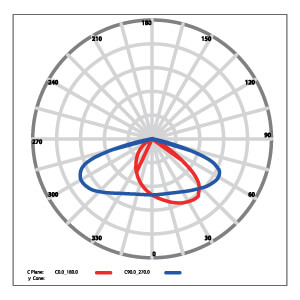

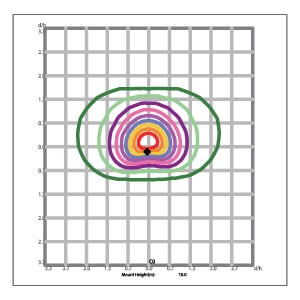

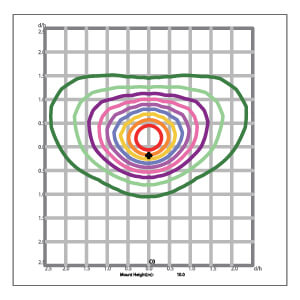

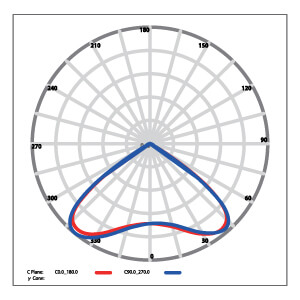

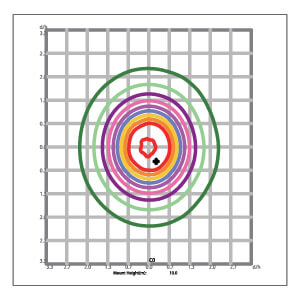

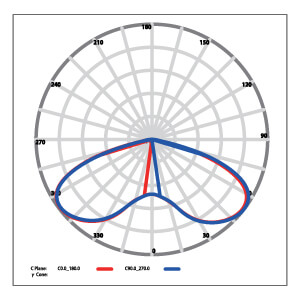

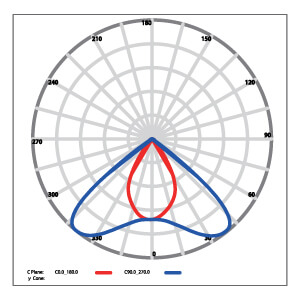

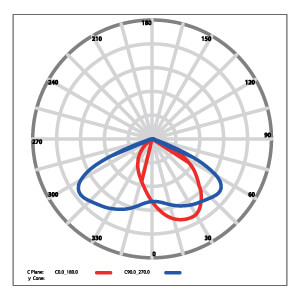

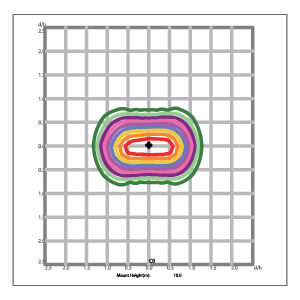

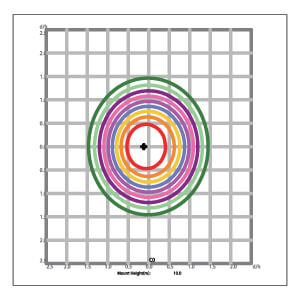

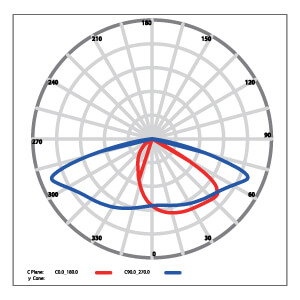

Check out the instructions in which we explain what can be read from these graphs.
Manual
Product Data
| Part# |
Power |
Solar Panel |
Battery |
Efficacy (IES) |
Total Lumen |
Product Dimensions |
| EL-TST-30 |
30W |
60W/18V |
12.8V/24AH |
195 lm/W |
5,850lm |
950x405x270mm |
| EL-TST-40 |
40W |
60W/18V |
12.8V/30AH |
195 lm/W |
7,800lm |
950x405x270mm |
| EL-TST-50 |
50W |
70W/18V |
12.8V/30AH |
195 lm/W |
9,750lm |
1050x405x270mm |
| EL-TST-60 |
60W |
70W/18V |
12.8V/36AH |
195 lm/W |
11,700lm |
1050x405x270mm |
| EL-TST-80 |
80W |
80W/36V |
25.6V/24AH |
195 lm/W |
15,600lm |
1250x405x270mm |
| EL-TST-90 |
90W |
100W/36V |
25.6V/30AH |
195 lm/W |
17,550lm |
1550x405x270mm |
| EL-TST-120 |
120W |
120W/36V |
25.6V/42AH |
195 lm/W |
23,400lm |
1250x855x270mm
(Extendable Solar Panel) |
| EL-TST-150 |
150W |
150W/36V |
25.6V/48AH |
195 lm/W |
29,250lm |
1550x855x270mm
(Extendable Solar Panel) |
